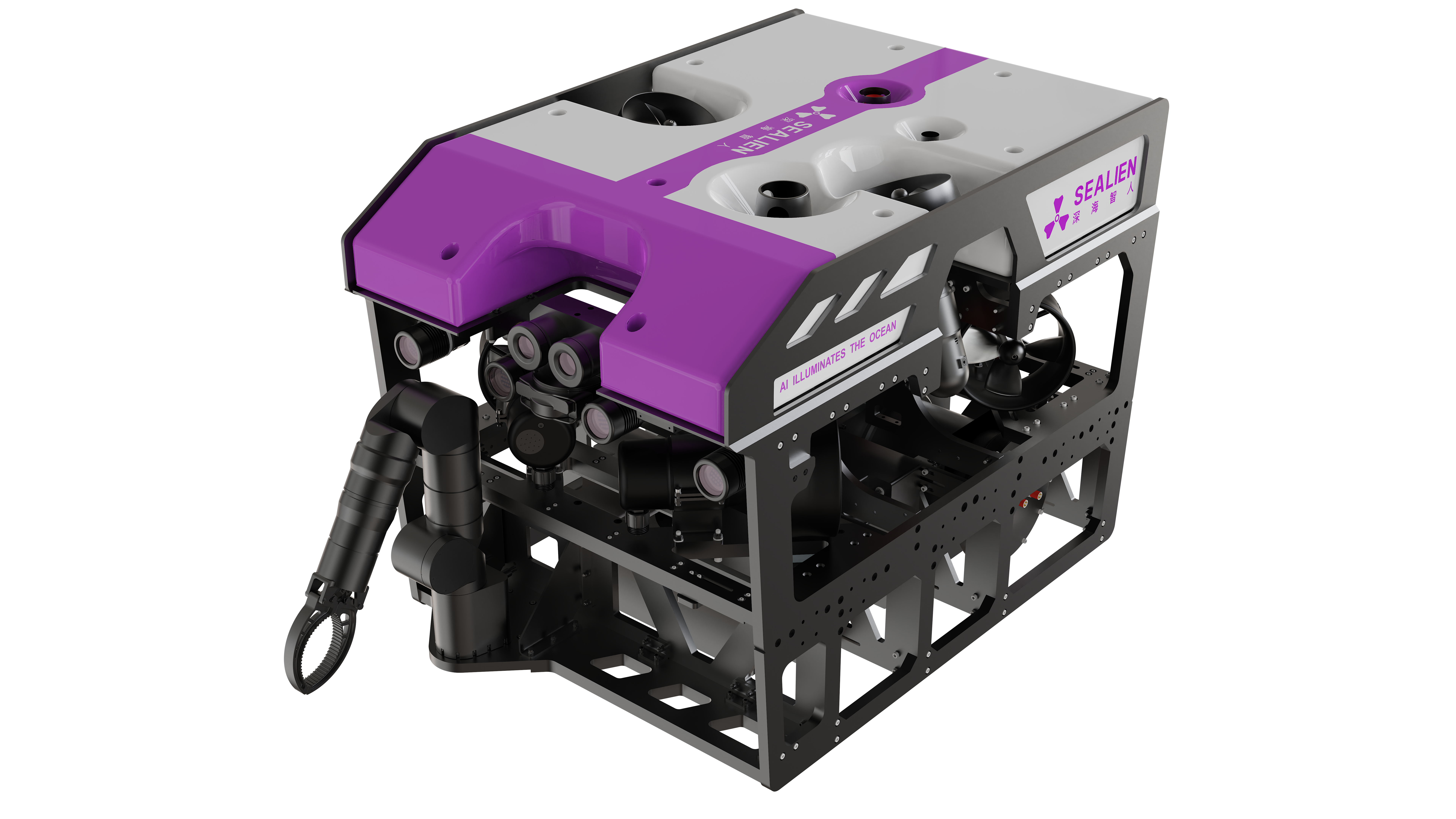

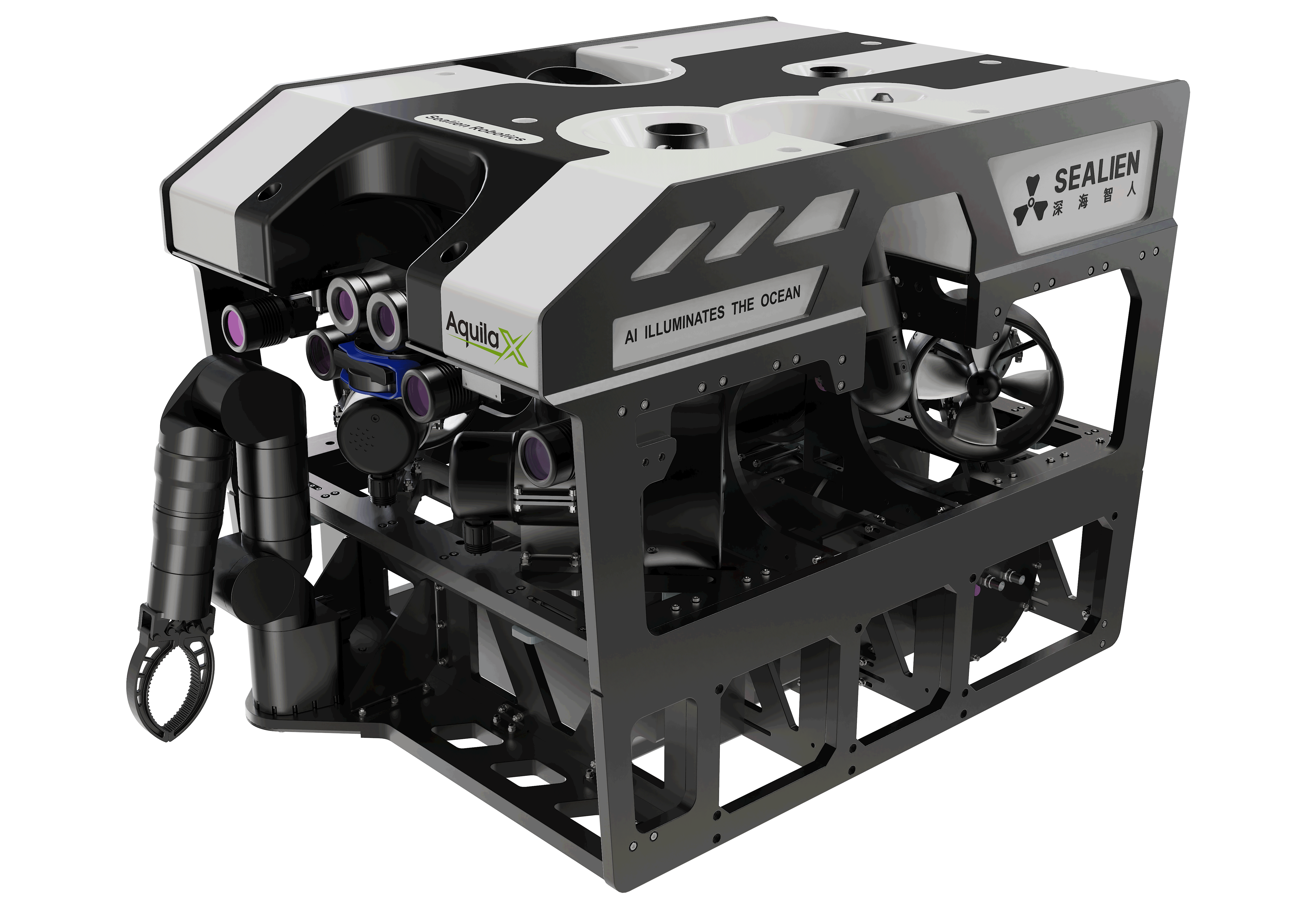

Inspection ROV

The Inspection ROV is equipped with underwater observation and monitoring capabilities. With its agile mobility and high-definition imaging system, it serves as a fundamental tool for marine environment observation, underwater ecological research, visual inspection of subsea facilities, diver-assisted observation, and shallow-sea scientific exploration.

Functional Features

Key Performance Metrics

Inspection ROV, depth rating: 600 msw, payload capacity: ≥16 kg, frame lifting capacity: 100 kg

Tool Support Capability

Equipped with a 5-degree-of-freedom manipulator

Functional Highlights

High-thrust thruster system, capable of withstanding strong currents with ease.Highly reliable and stable platform

Technical Parameter

For reference only

Dimensions	1200 mm (L) × 850 mm (W) × 600 mm (H)
Depth	600 msw
Payload Capacity	≥16 kg
Frame Lifting Capacity	100 kg
Weight in Air	160 kg

Product Highlights

Advanced Positioning System

Equipped with attitude sensors, depth sensors, altimeters, obstacle avoidance sonar, and multibeam sonar, enabling real-time positioning and comprehensive monitoring of the ROV's position and attitude at various depths

Advanced Intelligent Navigation System

Capable of autonomously reaching preset positions and adjusting its attitude based on feedback from the positioning system. Can autonomously navigate along predefined paths, detect and avoid obstacles, and plan alternative routes. Supports restricted zone management
